Bidbury and Co Adjustable Pressure Control Valve
About this item
Description

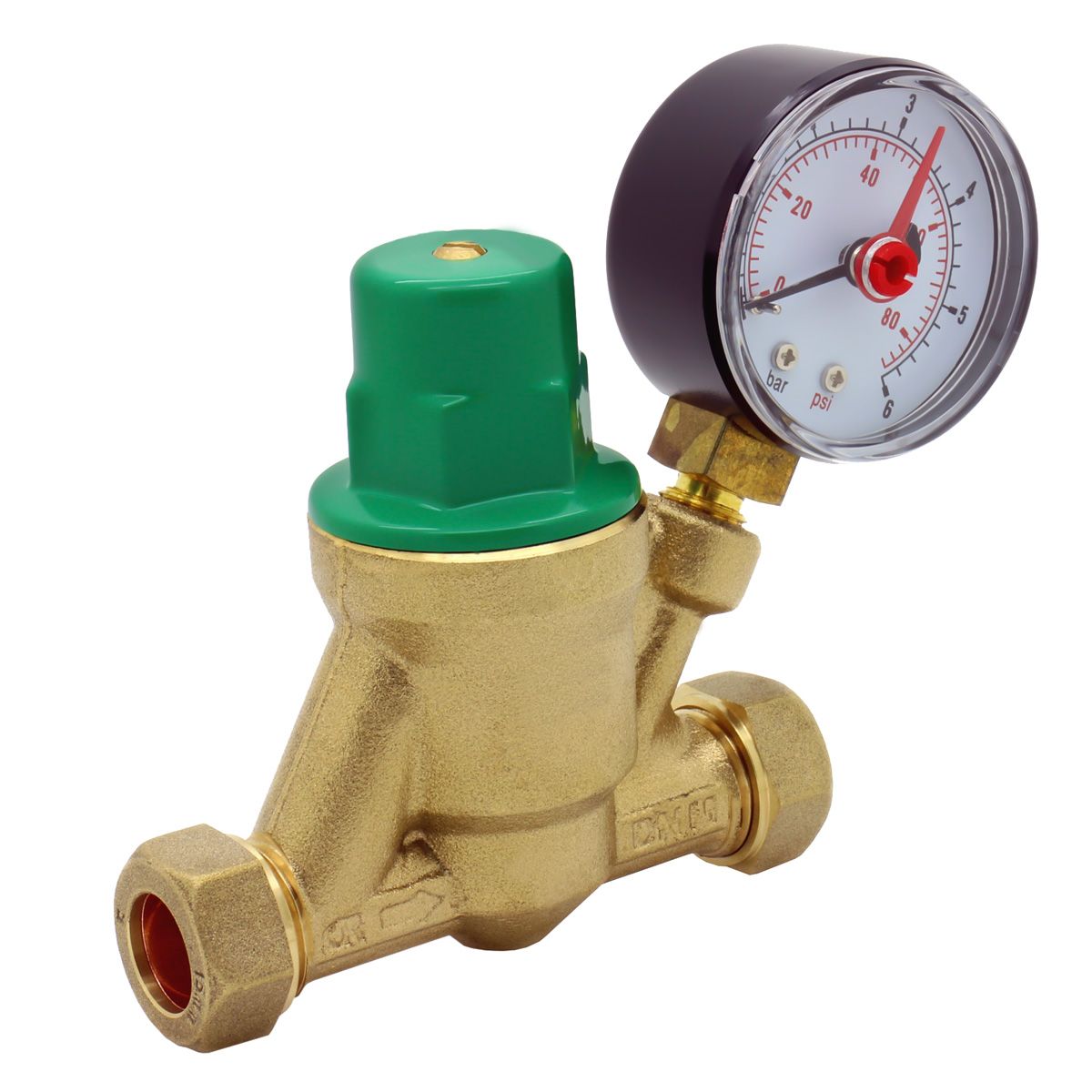

Bidbury and Co Adjustable Pressure Control Valve
Designed for Charlbury Pull-Out Rinses & High-Pressure Kitchen Tap Installations. Maintain smooth performance, balanced water flow, and long-term protection for your kitchen tap installation with the new Bidbury & Co Pressure Control Valve. Engineered for use with the Charlbury pull-out rinse and suitable for any kitchen tap installation where incoming water pressure requires regulation, this fully adjustable valve helps protect tap components from excessive pressure while improving usability and overall performance
Why Use a Pressure Control Valve? Modern high-pressure plumbing systems can often exceed the ideal operating pressure for kitchen taps and pull-out rinses. Excessive pressure can lead to:
- Premature wear of valves and internal components
- Increased risk of dripping or spluttering
- Poor hot and cold water balancing
- Reduced lifespan of rinse hoses and moving components
- Excessive water flow and splashback
The Bidbury & Co Pressure Control Valve helps ensure a controlled and balanced water supply, improving both functionality and reliability.
Key Features
- Suitable for pressures up to 16 bar
- Adjustable pressure range from 1.0 – 6.0 bar
- Factory preset to 3 bar (+/- 0.3)
- Suitable for both hot and cold water applications
- Operates at temperatures up to 80°C
- Drop-tight valve technology controls pressure under both flow and no-flow conditions
- Integral serviceable strainer helps protect the valve seat from debris
- Can be installed in any orientation for maximum installation flexibility
- Supplied with pressure gauge and gauge port plug
Technical Information
- WRAS Approved
- BS1192:4 Compliant
- BSB Compliant
- Product Code: PRESCONT1
- Operating Pressure: Up to 16 bar
- Adjustable Pressure Range: 1.0 – 6.0 bar
- Factory Pressure Preset: 3 bar (+/- 0.3)
- Operating Temperature: Up to 80°C
- Connection Type: 15mm FF, ¼in Gauge Connection
- Inlet Diameter: 15 mm
- Outlet Diameter:15 mm
- Nominal Size: 98 x 94 x 43 mm
- Finish: DRZ Brass
- Fittings Material: Brass
- Gauge Material: Nickel Plated
Installation Benefits By regulating pressure to the ideal operating range, the valve helps:
- Improve tap usability
- Enhance hot and cold water mixing
- Protect internal seals and valves
- Reduce unnecessary strain on rinse hoses
- Minimise the likelihood of spluttering or dripping
- Extend the working life of kitchen taps and accessories
Compact, durable, and fully serviceable, the Bidbury & Co Pressure Control Valve has been designed to integrate seamlessly into both new and existing installations. Its flexible installation orientation and included pressure gauge make setup and adjustment simple for installers while providing reassurance for homeowners. For further information, technical support, or installation guidance, please contact the Bidbury & Co technical team.
